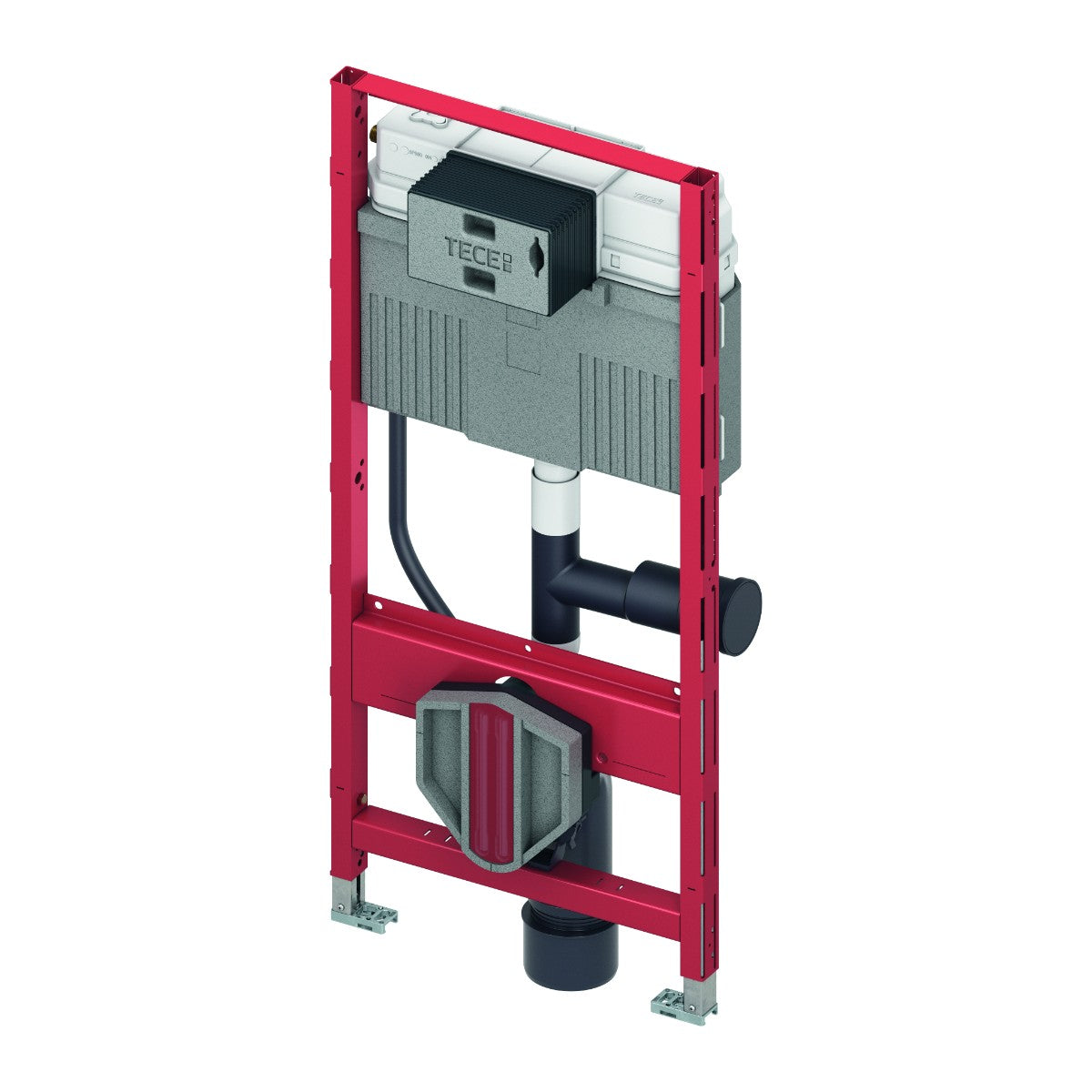

TECEprofil WC installation frame with Uni-flush cabinet, with connection for odour extraction, installation height 1120 mm

TECE

TECEprofil WC installation frame with Uni-flush cabinet, with connection for odour extraction, installation height 1120 mm

Name: TECEprofil WC installation frame with Uni-flush cabinet, with connection for odour extraction, installation height 1120 mm
Brand: TECE
SKU: TEP9300303
Price: 480.0 EUR
Availability: InStock

€480,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Tuesday, 3 November. We versturen op werkdagen tot 16:25

Buy individual parts

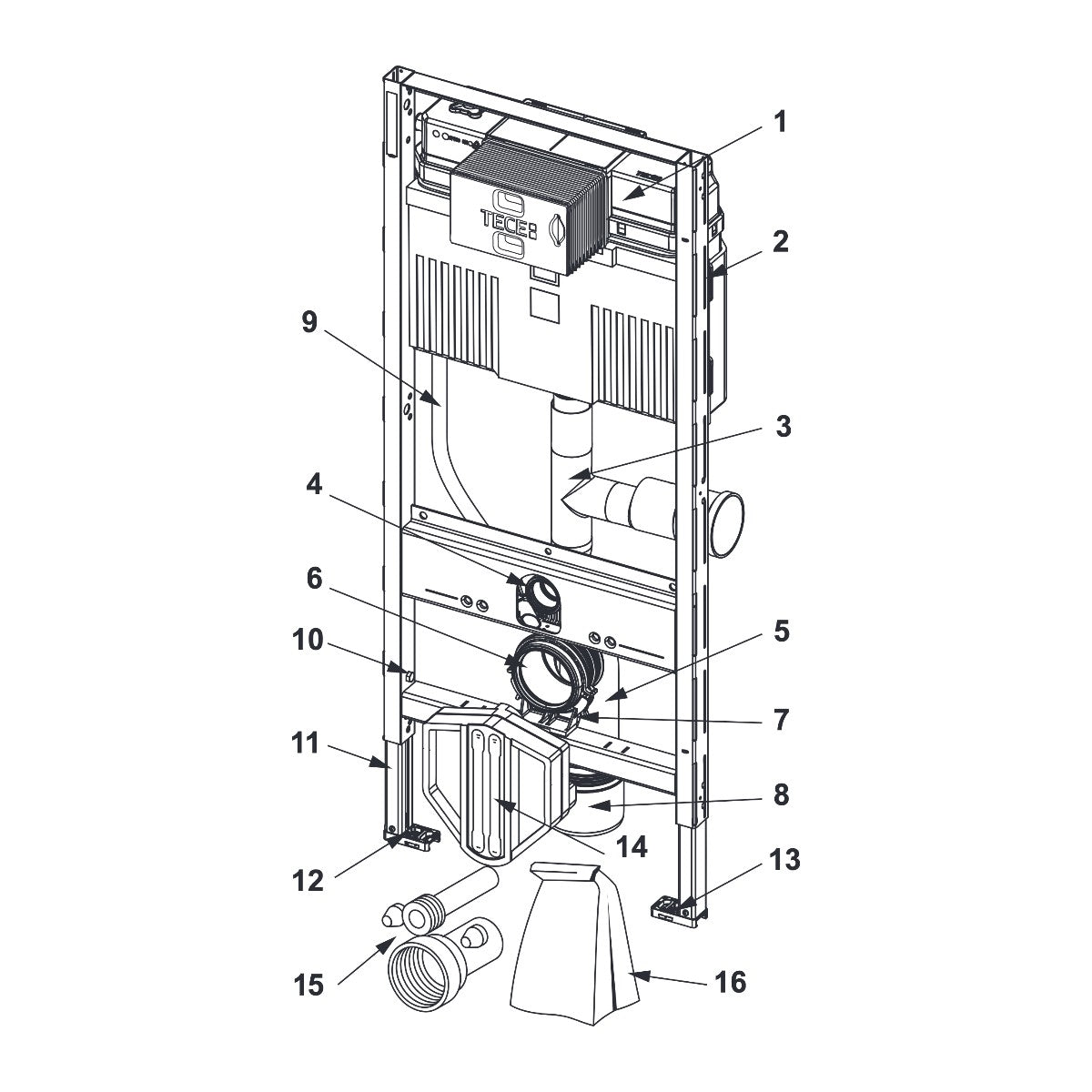

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

1

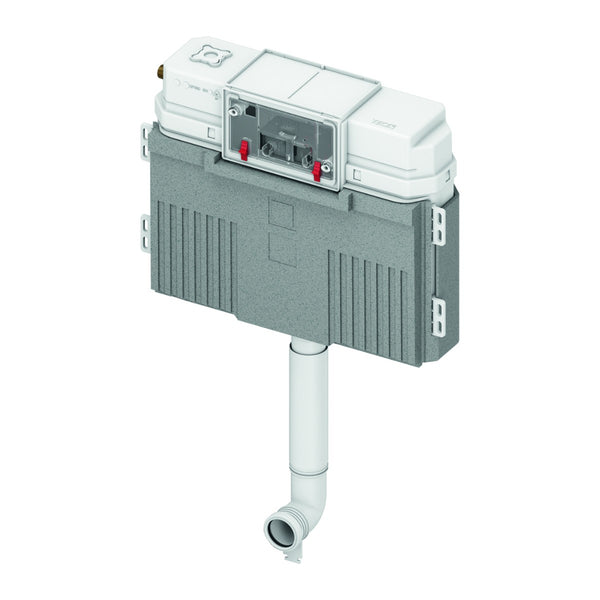

TECE Separate Reservoir section for 1120 mm, front control complete

€343

Special order
2
TECE Mounting set for Uni- flush cabinet Article number 9820040

€14

Special order
3

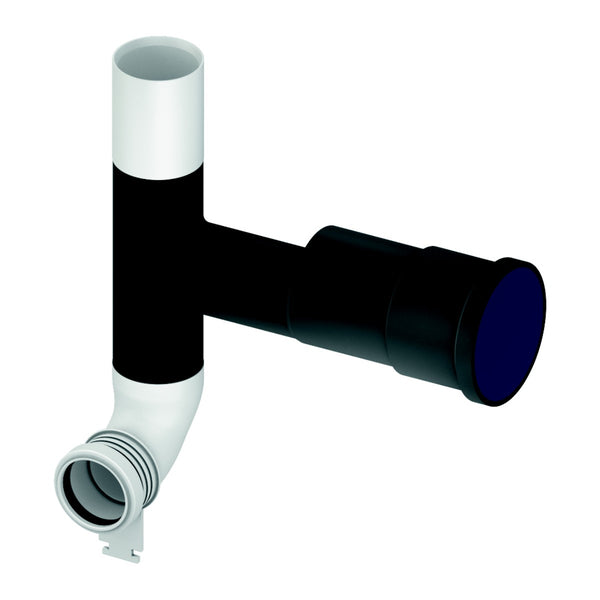

TECE Flush pipe for odour extraction DN 70 "right" 90 gr.

€77

Special order
3
TECE Flush pipe for odour extraction DN 70 "left" 90 gr.

€78

Special order
3

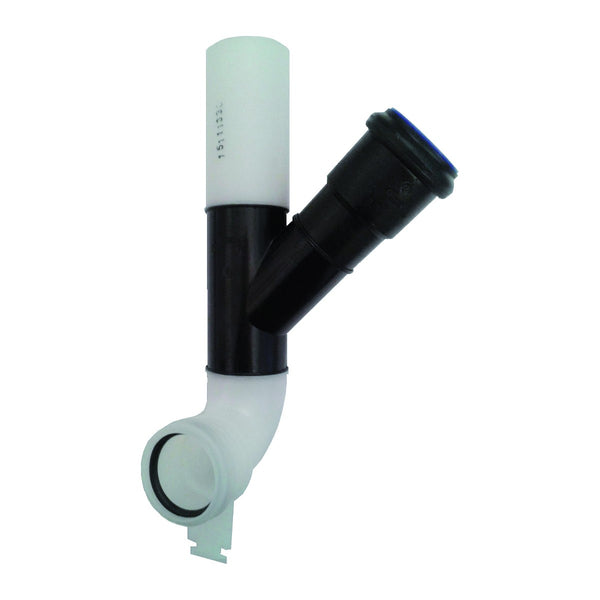

TECE Flush pipe for odour extraction DN 50 "right" 45 gr.

€78

Special order
4
TECE Sealing for downpipe/feed pipe installation element

€4

Back in stock soon
5
TECE WC drain bend DN 90°. DN 90/90 PP

€34

Special order
6
TECE Sealing for WC drain bend/drain pipe DN 90

€8

Back in stock soon
7
TECE WC drain holder complete, bottom part (fig. 5) Article number 9820348

€6

Special order
8
TECE WC transition DN 90/100 PP

€20

Special order
9
TECE spare part mounting clips and sheathing tube

€12

Special order
10
TECE Foot brake with steel spring Article number 9820447

€6

Special order
11
TECE C-profile for footrest for built-in cistern

€24

Special order
12
TECE Footrest left for installation frame

€16

Special order
13
TECE Footrest right for installation frame

€16

Special order
14
TECE spare part WC connection box

€22

Special order
15
TECE Connection set DN 90 for wall-mounted toilet

€37

In Stock (1 pcs)
16
TECE Bag with mounting material etc. for built-in cistern

€38

In Stock (1 pcs)

Awarded a 9+
by 9000+ Customers
100% Original
Parts
FREE shipping
from €75 (NL)

TECEprofil WC flush-mounted frame with Uni-flush cabinet, with connection for odor extraction, installation height 1120 mm Toilet installation frame including "easy-fit" control panel and conduit for connecting electronic shower toilets. For mounting on TECEprofil profile tubes or for installation in metal or wood profile walls, and as a front-wall or corner installation; also suitable for freestanding installation. Uni-sink cabinet for front operation: safety reservoir made of impact-resistant plastic, tested according to EN 14055 flush cabinet completely pre-assembled and sealed reservoir connection with external thread R 1/2" side, compatible with quick couplings 10-liter reservoir volume; 6-liter preset standard flush volume; 4.5/7.5/9-liter flush volume adjustable at any time; 3-liter partial flush volume with dual-flush technology; remaining water can be used for immediate rinsing. insulated against condensation for TECE control panels and WC control fittings. can be used with single or duo coil technology "easy fit" control plate mounting installation tunnel for service opening, can be shortened without tools low-noise hydraulic filling valve, fitting group 1 according to DIN 4109 connection for odor extraction (DN 70), matching fans such as Maico ER 100 Mounting frame: self-supporting, powder-coated 2 mounting bolts and nuts M 12 Toilet waste bend DN 90, including PP transition piece DN 90/100 transition piece also suitable for horizontal installation "WC connection set DN 90 connection box including shell protection and protective sleeve for universal shower-toilet connection (check connection position), including empty socket for transformer Adjusting a raised ceramic mounting for a seat height of 48 cm is possible according to DIN 18040 (DIN 18040: Barrier-free construction - Part 1: Publicly accessible buildings and workplaces). Article number: 9300303

Download attachment TECE_PR230132_SP430035_PR230340_PR230414_PR230431_pr230409.pdf

Product ID	15356064661888
Product type	-
Application area	Built-in Elements
Price condition group	1100127 : TECE control panels

We are very confident in our specialization and are therefore happy to offer you our assistance in ordering the right parts.

We believe in the advice we give and therefore guarantee its accuracy . If we've given you advice that is demonstrably incorrect, we'll take responsibility for it and you can return it free of charge* , whether it was specially ordered or not.

That's our Advice Guarantee, so if you have any doubts, please contact us for free, tailored advice.

*If you do not ask for advice, the normal return conditions apply.

This product is out of stock and cannot be returned
