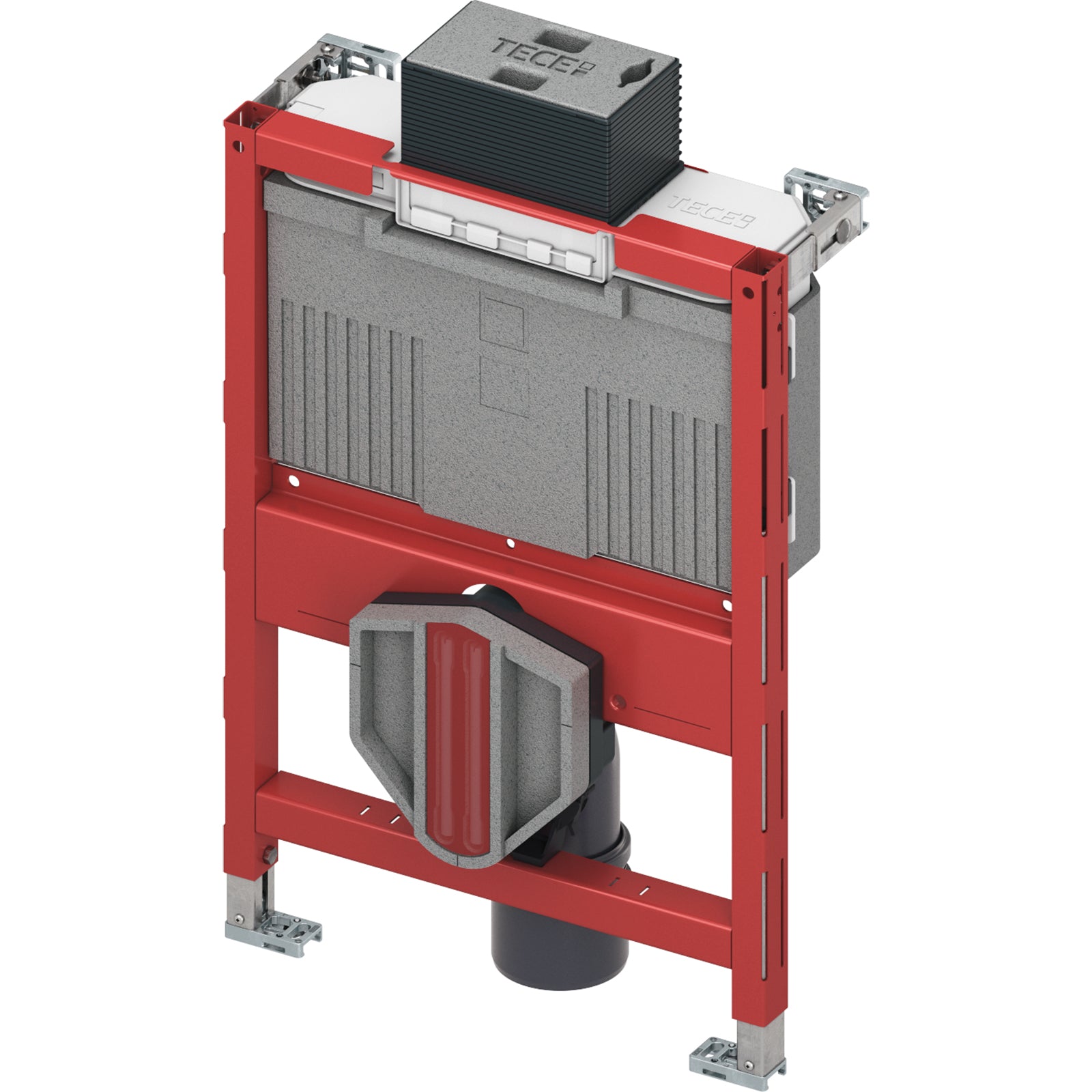

TECE TECEprofil concealed WC frame with Uni 750 cistern, installation height 750 mm

TECE

TECE TECEprofil concealed WC frame with Uni 750 cistern, installation height 750 mm

Name: TECE TECEprofil concealed WC frame with Uni 750 cistern, installation height 750 mm
Brand: TECE
SKU: TEP9300291
Price: 480.0 EUR
Availability: InStock

€480,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Tuesday, 1 December. We versturen op werkdagen tot 16:25

Buy individual parts

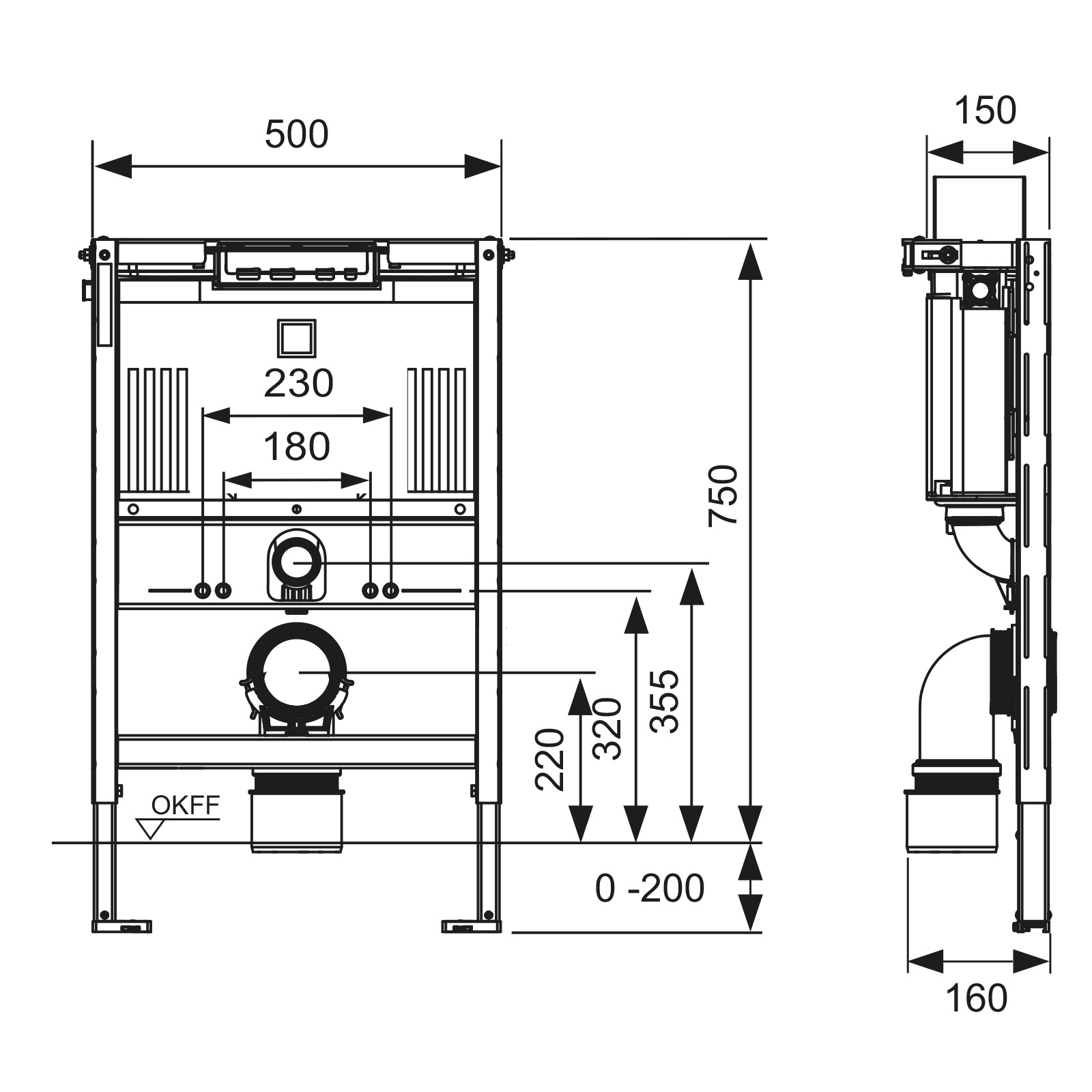

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

1
TECE-Uni 750 cistern

€254

Special order

Has its own parts (11)
2
TECE spare part mounting kit for Uni-tank

€14

Special order
3
TECE spare part sealing ring between flush pipe and connection set

€4

Back in stock soon
4
TECE WC waste bend DN 90 for concealed frame dry construction, PP

€34

Special order
5
TECE spare part seal for drain bend DN 90

€8

Back in stock soon
6
TECE TECEprofil holder for WC waste bend complete, mounting on traverse at the bottom

€6

Special order
7
TECE Toilet Adapter DN 90/100 PP Adapter

€20

Special order
8
TECE spare part foot valve with steel spring

€6

Special order
9
TECE spare part C-profile for foot valve set for concealed cistern

€24

Special order
10
TECE spare part left footrest

€16

Special order
11
TECE spare part right footrest

€16

Special order
12
TECE spare part rough-in protection for Uni 750 shower-WC connection, cistern

€20

Special order
13
TECE WC connection set DN 90, PP, 200 mm

€37

In Stock (1 pcs)
14
TECE spare part installation kit for WC module

€38

In Stock (1 pcs)
15
TECE spare part flush-mounted frame bracket with depth adjustment Uni 750-reservoir EU

€139

Special order

Awarded a 9+
by 9000+ Customers
100% Original
Parts
FREE shipping
from €75 (NL)

TECE TECEprofil concealed WC frame with Uni 750 cistern, installation height 750 mm

Concealed WC frame including "easy fit" control panel installation. For mounting on TECEprofil profile pipes or for installation in metal or wooden profile walls and as a front wall or corner module; also suitable for single-block installation.

Uni 750 cistern for top-side operation:

safety tank made of impact-resistant plastic, tested according to EN 14055
cistern fully pre-assembled and sealed
cistern connection with R 1/2" male thread on the side, compatible with quick adapters
8-litre cistern volume; 6-litre pre-set standard flush volume; 4.5-litre flush volume adjustable at all times; 3-litre partial flush volume with dual flush technology; residual volume can be used immediately for cleaning flush.
condensation insulated
for TECE control panels and WC fittings
can be used as a single or dual flush cistern
"easy fit" control panel installation
installation tunnel for service opening, can be shortened without tools
low-noise, hydraulic fill valve, fitting group 1 according to DIN 4109

Concealed frame:

self-supporting, powder-coated
two threaded rods and M 12 nuts
WC waste bend DN 90, including PP DN 90/100 adapter
adapter also suitable for horizontal installation
WC connection set DN 90
WC connection box including rough-in protection, with junction box and cover for transformer

Available separately:

WC control panel (see control panels)
mounting hardware for installation in front wall, corner arrangement or in wooden profile wall
TECE upgrade kit for dry installation of TECE shower WCs (optional)

Note:
For ceramic toilet bowls with a small support surface (= distance from the center between the mounting bolts to the bottom of the support surface not greater than 18 cm), e.g. V & B Memento, Subway 2.0 - the set of steel supports 9041029 must be installed in the lower part of the construction.

Download attachment TECE_PR230132_PR230414_PR230431_PR230424_sp430181.pdf
