TECE

TECEdrainprofile drain "perpendicular", DN 50 drain, 1.2 l/s

€200,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Wednesday, 24 December. We versturen op werkdagen tot 16:25

  • Awarded a 9+
    by 9000+ Customers

  • 100% Original
    Parts

  • FREE shipping
    from €75 (NL)

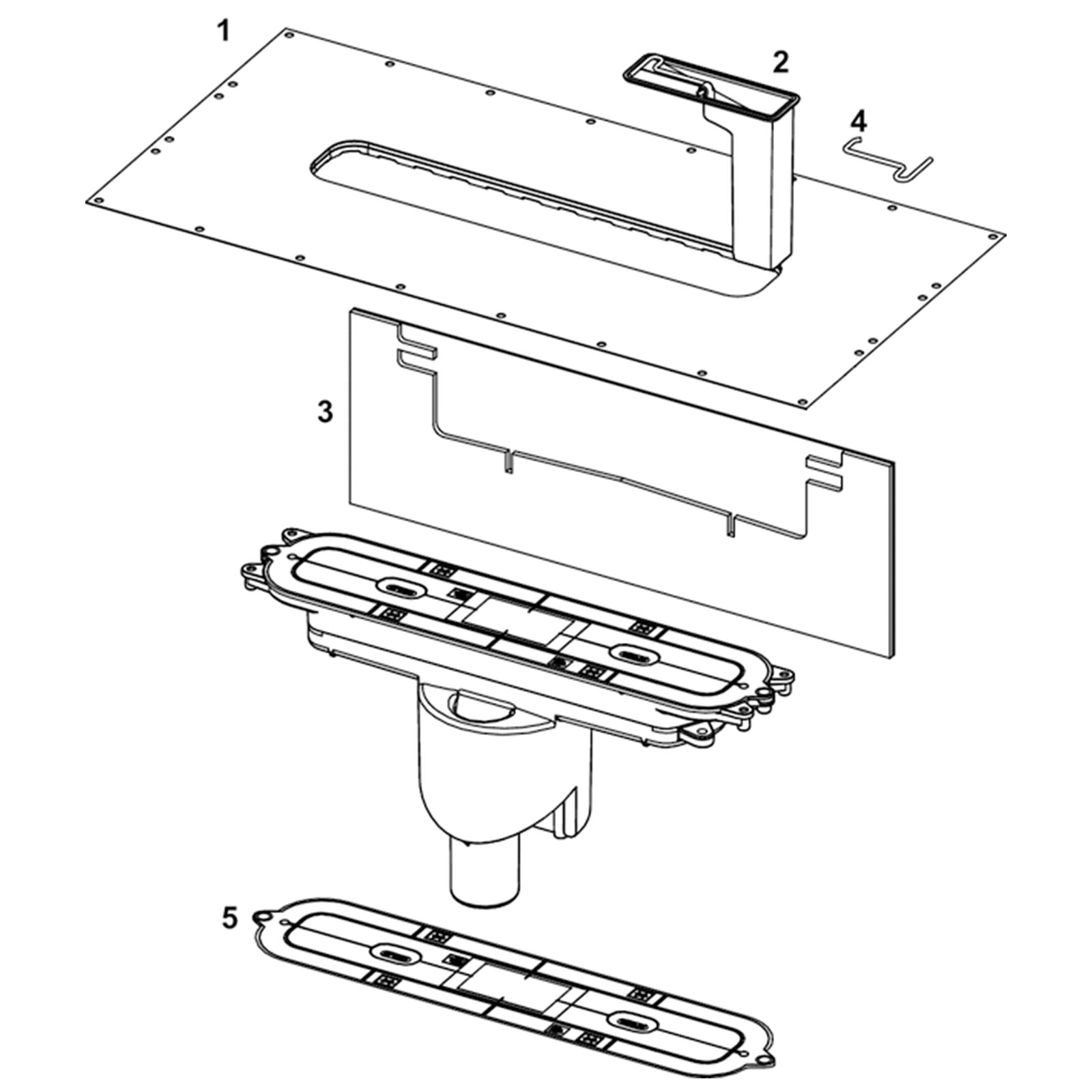

TECEdrainprofile drain "perpendicular", DN 50 Drain for TECEdrainprofile shower profiles, for installation in a screed floor, for vertical connection to a DN 50 drain. With a Seal System sealing sleeve (factory-fitted) for creating a connection to the composite seal in accordance with DIN 18534. min. installation height 47 mm (bottom of drain to top of screed floor) discharge capacity ≥ 1.31/≥ 1.37 l/s (according to EN 1253 at 10/20 mm weir height above profile cover) water seal height 50 mm removable odor trap integrated screed anchorage co-moulded clickable and flexible sealing sleeve with Seal System suitable prefabricated sound-dampening set protection plate sliding/displacement seal for connection to TECEdrainprofile shower profile and to compensate for structural tolerances Article number: 673003
