TECE TECEdrainpoint S 116 afvoerset "superlaag" met Seal System universele flens, betegelbare tegelgoot "plate" 150 mm

Name: TECE TECEdrainpoint S 116 afvoerset "superlaag" met Seal System universele flens, betegelbare tegelgoot "plate" 150 mm
Brand: TECE
SKU: TEP3601108
Price: 157.0 EUR
Availability: InStock

€157,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Tuesday, 3 November. We versturen op werkdagen tot 16:25

Buy individual parts

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

1

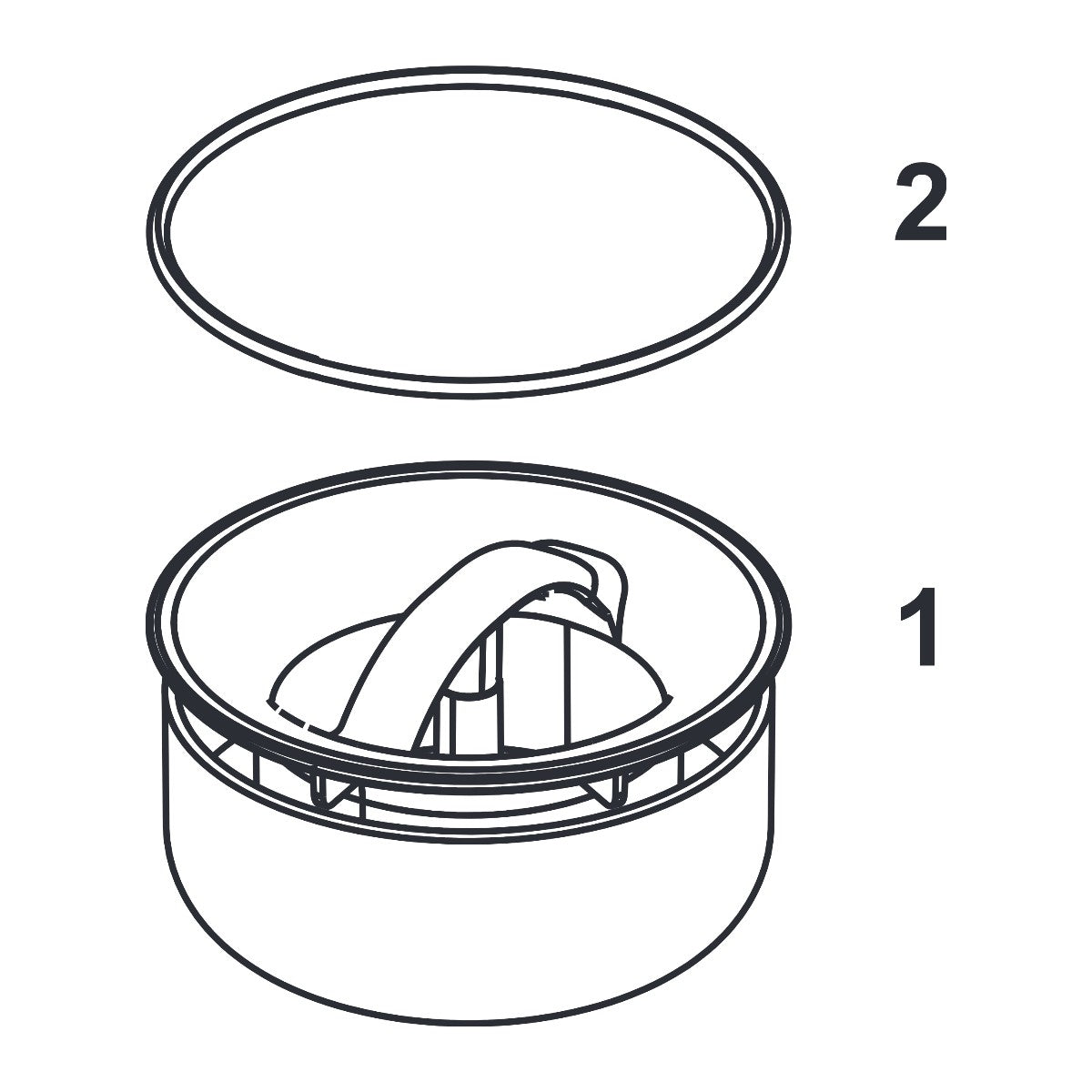

Tece Stench seal "super low" for horizontal drains DN 50 (fig 1)

€20

Special order

Awarded a 9+
by 9000+ Customers
100% Original
Parts
FREE shipping
from €75 (NL)

TECE TECEdrainpoint S 116 afvoerset "superlaag" met Seal System universele flens, betegelbare tegelgoot "plate" 150 mm

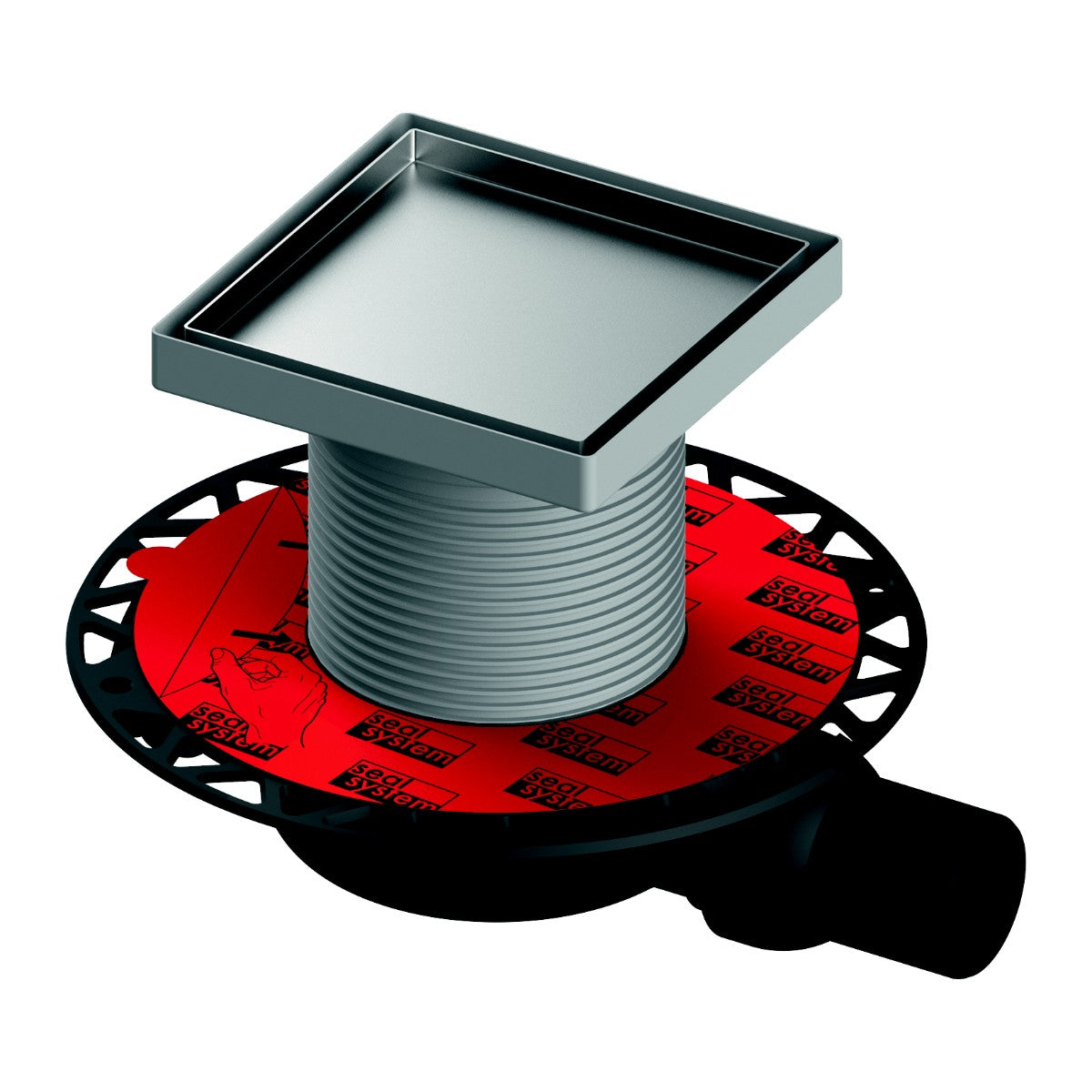

Afvoerset TECEdrainpoint S 116 horizontaal, "superlaag" DN 50, rvs-roosterrand en betegelbare tegelgoot "plate" 142 x 142 mm.

Bestaande uit:

afvoerelement DN 50 horizontaal, zeer vlak, van kunststof (PP)
met universele flens voor gelaagde afdichtingen conform DIN 18534 of klemflensverbindingen
met kogelgewricht
met horizontale toevoer DN 40 inclusief afsluitstop
met uitneembare stankafsluiter
gereduceerde waterslothoogte = 27 mm
opzetstuk van kunststof (ABS) en O-ring
roosterrand van getrokken rvs, materiaal 1.4301 (304)
tegelgoot "plate" uit rvs, afmetingen 142 x 142 mm, gepolijst oppervlak, belastingsklasse K3 (belastbaar tot 300 kg)
binnenhoogte van de betegelbare inlegger = 10,5 mm

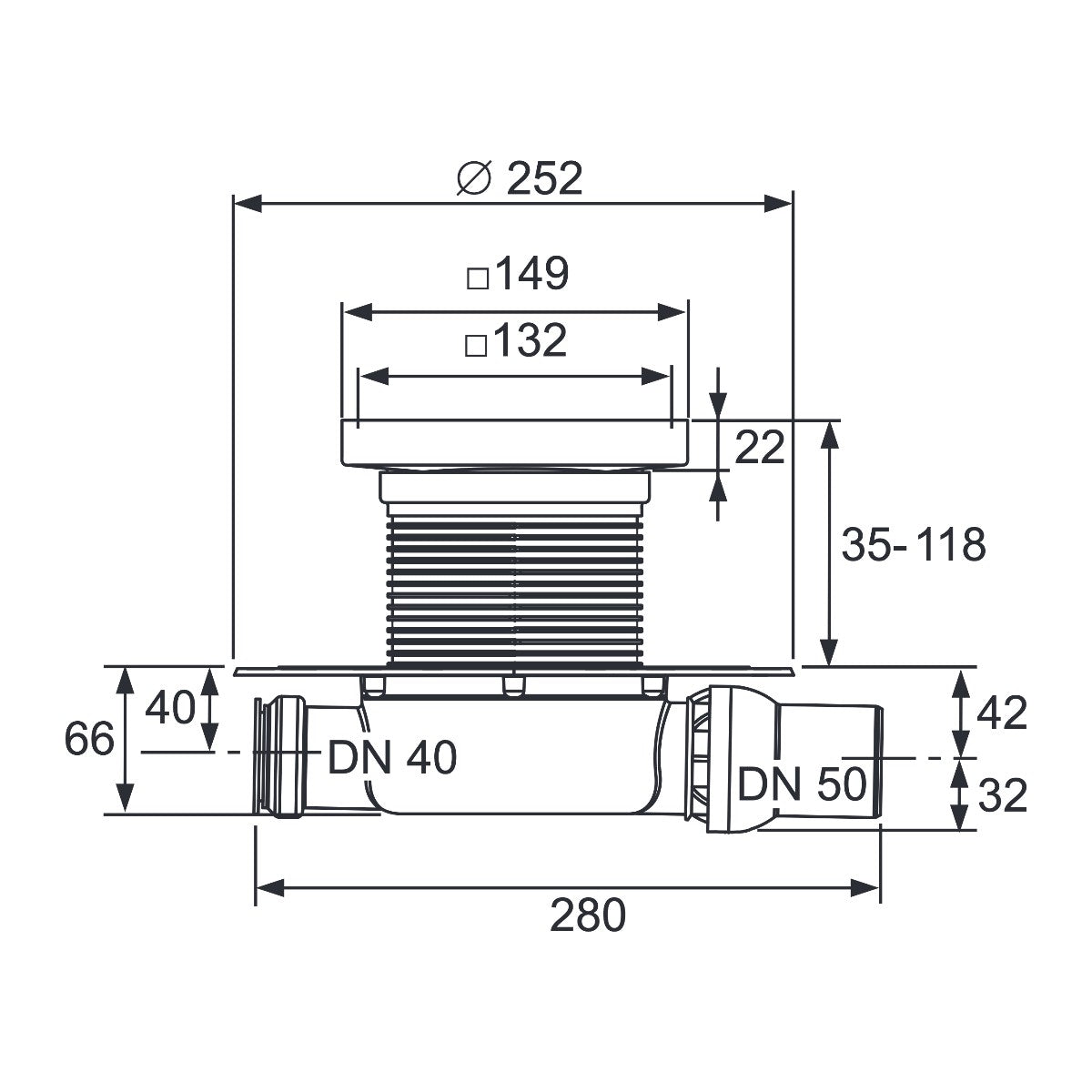

hoogteverstelling bij het maken van gelaagde afdichtingen: 22 mm (zonder opzetstuk) en 35-118 mm (met opzetstuk), afmetingen gelden vanaf bovenkant universele flens tot bovenkant roosterrand

Download attachment TECE_AT430210.pdf

Product ID	15995089256832
Product type	-
Application area	Douche Afvoeren
Price condition group	1100128 : TECE drainline
