Wisa Universele hydraulische vlotterkraan

Wisa Universele hydraulische vlotterkraan - maattekening

Wisa

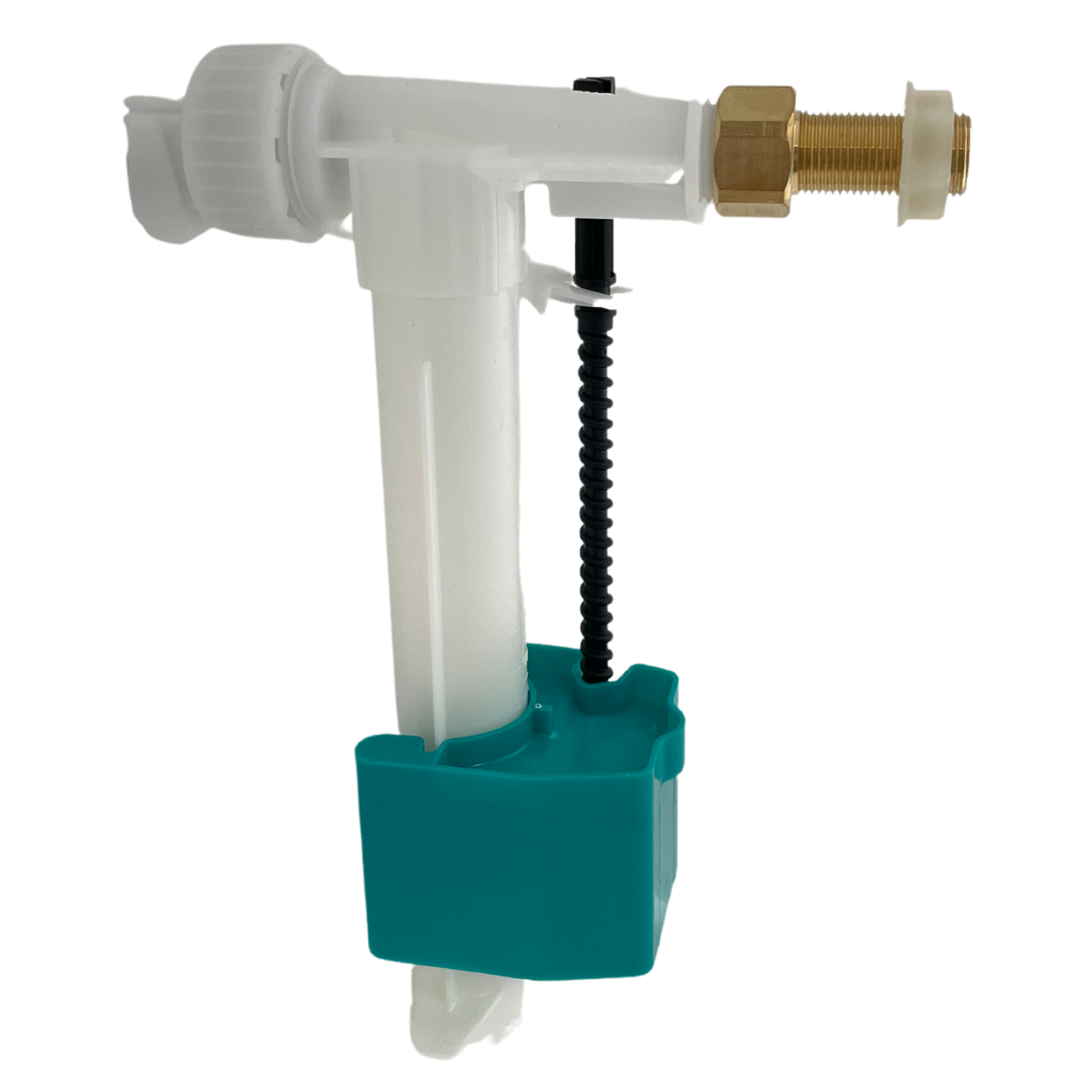

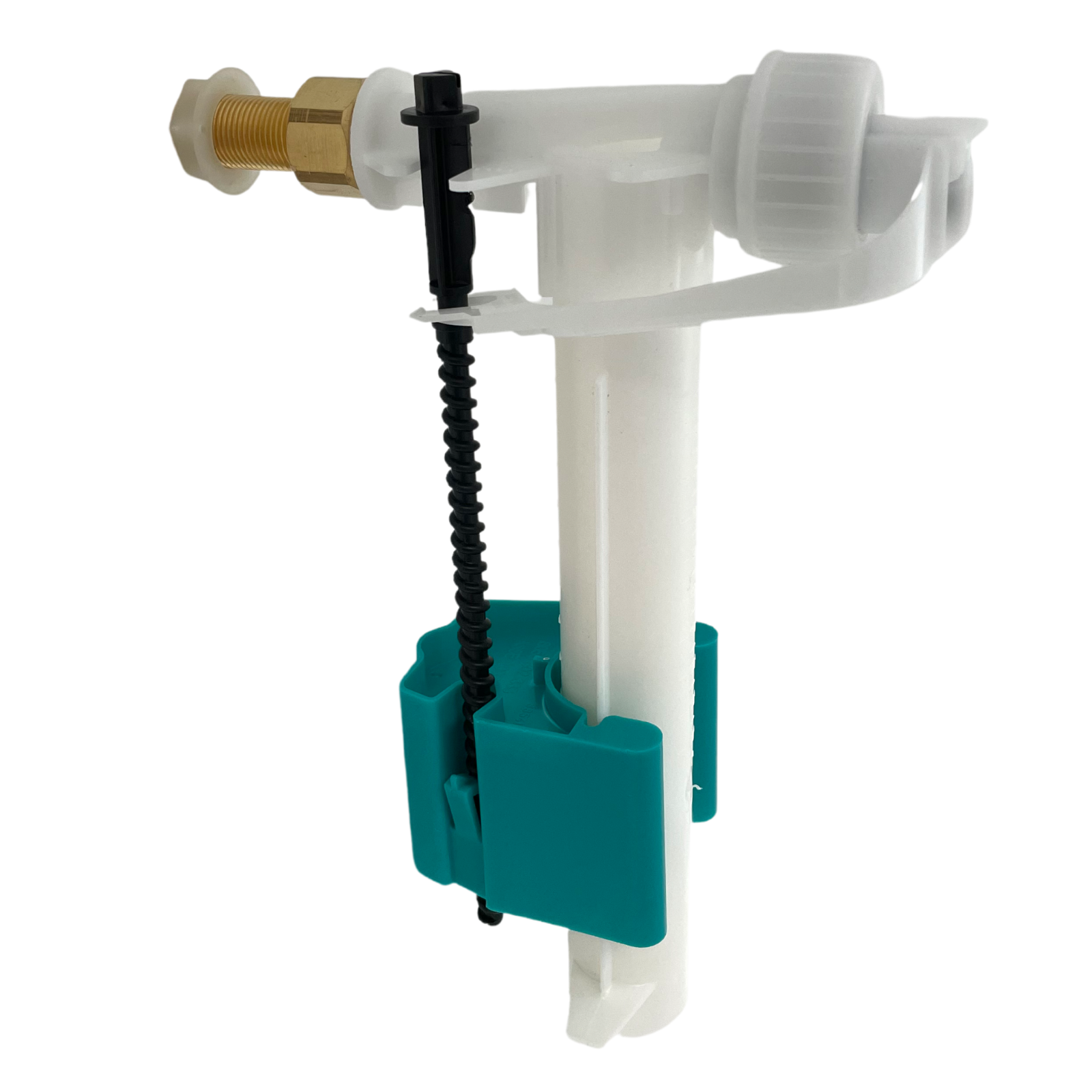

Wisa Universal Hydraulic Float Valve

Name: Wisa Universal Hydraulic Float Valve
Brand: Wisa
SKU: WP8035432783
Price: 43.0 EUR
Availability: InStock

~~Regular price €47,00~~ €43,00 Save 8%

Available colors

Universal Hydraulic Float Valve

hydraulic float valve 3/8 for various reservoirs

Stock item, only 15 items in stock in Groningen! Learn more

De verwachte levering is tussen Tuesday, 10 November en Wednesday, 11 November. We versturen op werkdagen tot 16:25

Buy individual parts

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

1

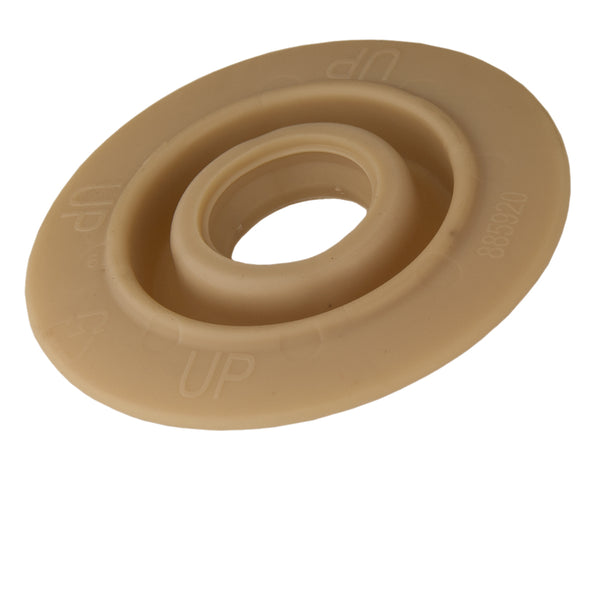

Wisa Membrane including support plate

€13

In Stock (30 pcs)
2
Wisa float valve cap for hydraulic float valve, new model

€7

In Stock (4 pcs)
3
Wisa Union nut hydraulic float valve 85

€8

No longer available
4
Wisa Union for hydraulic float valve

€4

In Stock (1 pcs)
5
Wisa Lever + union for hydraulic float valve

€7

Back in stock soon
7
Wisa Thru-hull Fitting

€5

No longer available

Awarded a 9+
by 9000+ Customers
100% Original
Parts
FREE shipping
from €75 (NL)

Wisa Universal hydraulic float valve

Is your tank no longer filling, filling very slowly, or is water continuously running into the pan?

The float valve controls the water supply: as soon as the tank is full, the valve closes. Over time, limescale and wear prevent it from closing properly, or it may fail to open.

Suitable for all standard tanks, Duoblok and built-in systems
Short filling time: 6 litres in 46 sec (0.3 MPa)
Noise level 13 dB(A) at 0.3 MPa, class 1 (NEN-EN-ISO 3822)

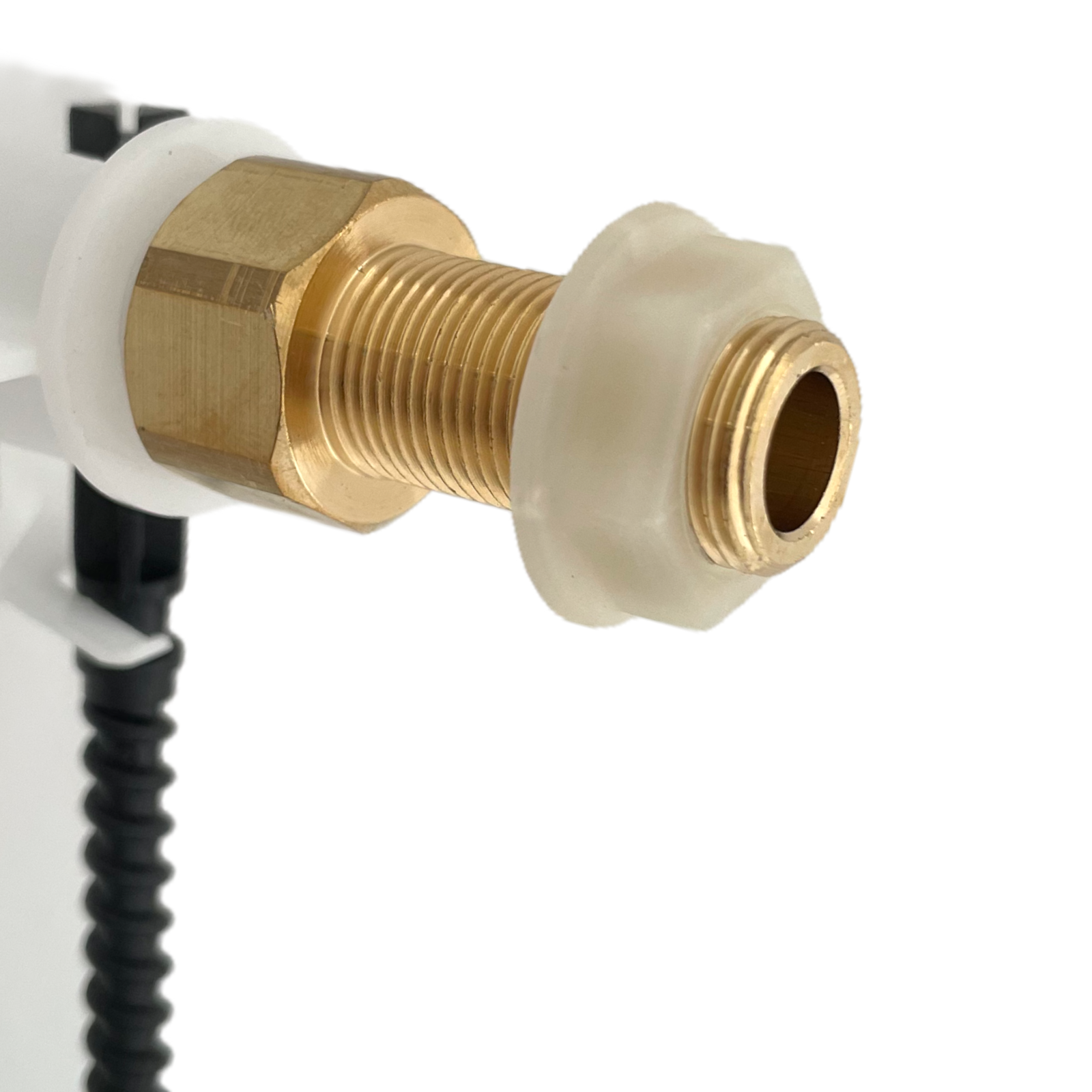

Equipped with a G 3/8 threaded end
Easy to adjust
KIWA approved
10-year warranty, excluding rubber parts
Without hose, ideally suited for all Sphinx/Novoboch/Warneton Duoblok tanks
Without hose, can be used in WISA XS and XT built-in systems
Without hose and with
Fits Wisa 250, 285, 300, 336 DF (until mid-2020), 336 DF (from mid-2020), 444 (until September 1999), 444 (from September 1999), 450 DF, 500, 600, 750, 790, 800 (until 1999), 800 (from 1999), 900, 1000/1040, 1250, 1036 DF (until mid-2020), 1036 DF (from mid-2020), XS, XT, Quadro, 2102 SO top control, 2100 SO front control, 2100 DF front control, 2000 DF front control and 2002 top control
Dimensions: 70 x 245 mm

Not sure if this part fits your tank? Send us a photo and we will check it for you!

Download attachment wisa-maattekening-8035432783.pdf

Product ID	15356192194944
Product type	-
Warehouse location	GRL4S03
Application area	Loose Parts
Price condition group	1100075 : Wisa parts
