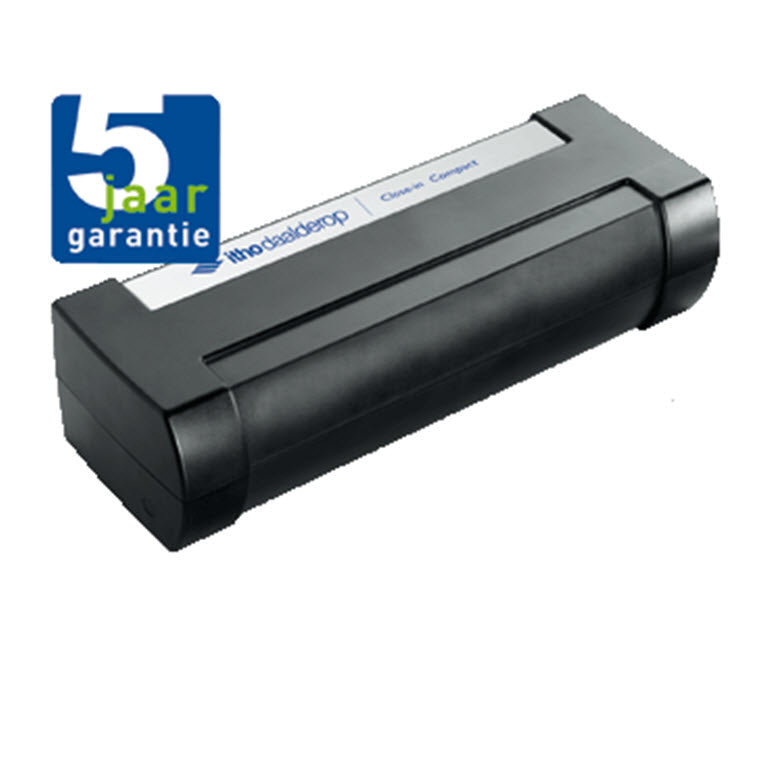

Daalderop Close In Compact Kitchen Boiler 1500W plinth model

Close-in Compact The Close-in Compact kitchen boiler is Daalderop's most compact kitchen boiler. It fits behind the plinth of almost any kitchen cabinet and is ideal for use with a dishwasher. The Close-in Compact meets the need for instant hot water without sacrificing space and is also very competitively priced. Instant hot water can result in significant savings on your gas and water bills. The Close-in Compact is easy to install as both a hot-fill and cold-fill option. For installation, you can use the Daalderop boiler connection set. -------------------------------------------------------------------------------- Material boiler tank Copper Material sheath: Plastic Boiler capacity 5 l Nominal power 1.5 kW Connection voltage 230 Vac Three phase execution No Close-in version With night current switch No Hot fill No Duo version Yes Wall mounting No Vertical placement Yes Horizontal placement Yes KIWA approved Yes Max. permissible operating pressure 8 bar Cleaning opening No Protective anode No Height 143 mm Width 550 mm Depth/diameter 211 mm Cold tap water connection External thread metric Hot tap water connection External thread metric Hot water thread size 3/8" (10) External pipe diameter hot tap water 10 mm External pipe diameter drain connection 15 mm Connection Low pressure/water pressure Model Lying/Portrait Power type Single (max.) Execution Increased power Thermostat adjustable No Incl. timer No Weight 4.5 kg Kema approved Yes Placement in relation to tap point Below Heating time/dT in min/°C 24/5/84
