TECE TECElux 100, built-in cistern 1120 mm

TECE

TECE TECElux 100, built-in cistern 1120 mm

Name: TECE TECElux 100, built-in cistern 1120 mm
Brand: TECE
SKU: TEP9600100
Price: 588.0 EUR
Availability: InStock

€588,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Friday, 6 November. We versturen op werkdagen tot 16:25

Buy individual parts

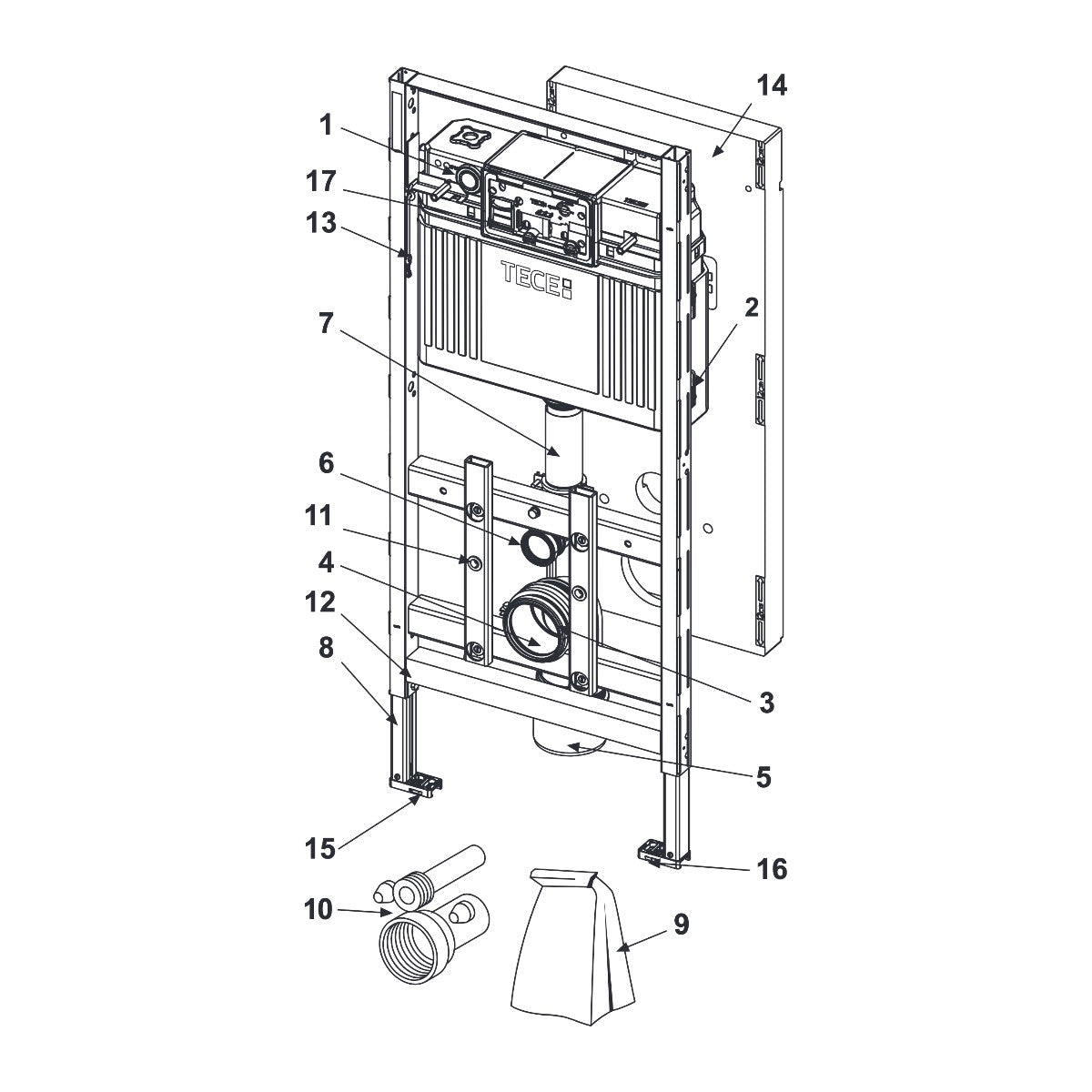

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

1
TECE Uni flush cabinet for TECElux installation frame

€254

Special order
13
TECE Safety Cable Article number 9820329

€11

Special order
14
TECE Construction Security Article number 9820330

€32

Special order

Awarded a 9+
by 9000+ Customers
100% Original
Parts
FREE shipping
from €75 (NL)

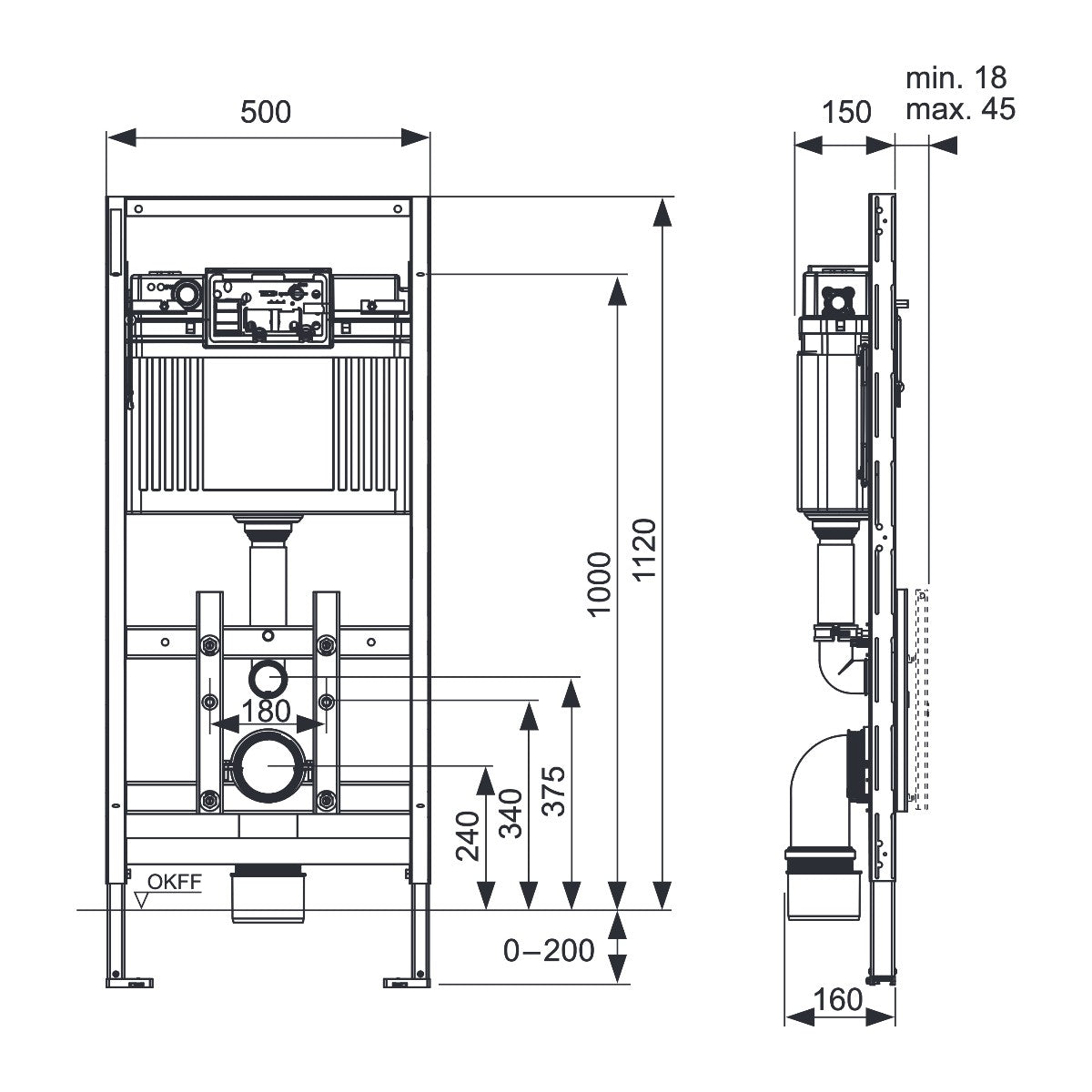

TECE TECElux 100, built-in cistern 1120 mm TECElux toilet installation frame 100, installation height 1120 mm Dry-build concealed cistern for attachment to TECEprofil profile tubes or for installation in metal or wood profile walls and as a front wall or corner installation. For TECElux operating and mounting glass plate. Completely pre-assembled built-in reservoir consisting of: Reservoir: safety reservoir made of impact-resistant PP reservoir completely pre-assembled and sealed angle stop valve and reservoir connection pre-assembled reservoir connection with 1/2" internal thread 10-liter reservoir capacity; 6-liter preset standard flush volume; 9/7.5/4.5-liter flush volume adjustable at any time; 3-liter partial flush volume with dual flush technology. Any remaining volume can be used directly for cleaning. insulated against condensation according to DIN EN 14055 luminaire group 1 according to DIN 4109 low-noise, hydraulic filling valve Includes insertion shaft for cleaning tablets. For inserting cleaning tablets into the reservoir for fresh rinsing. Mounting frame: self-supporting mounting frame with powder-coated surface depth-adjustable subframe for upper control glass plate and lower mounting glass plate two adjustable support feet for a floor construction of 0-200 mm two mounting bolts and nuts M 12 subframe for ceramic toilet bowls with mounting distance 180 mm flexible toilet drain bend DN 90 with transition piece DN 90/100 made of PP transition piece also suitable for horizontal installation toilet connection set DN 90, including shell plugs large shell security suitable for wall construction up to 45 mm Dimensions (h x w x d): 1120 x 500 x 160 mm

Download attachment TECE_SP430035_PR230414_PR230132_pr230226.pdf

Product ID	15356065939840
Product type	-
Application area	Built-in Elements
Price condition group	1100129 : TECE flushing technology
