VSH

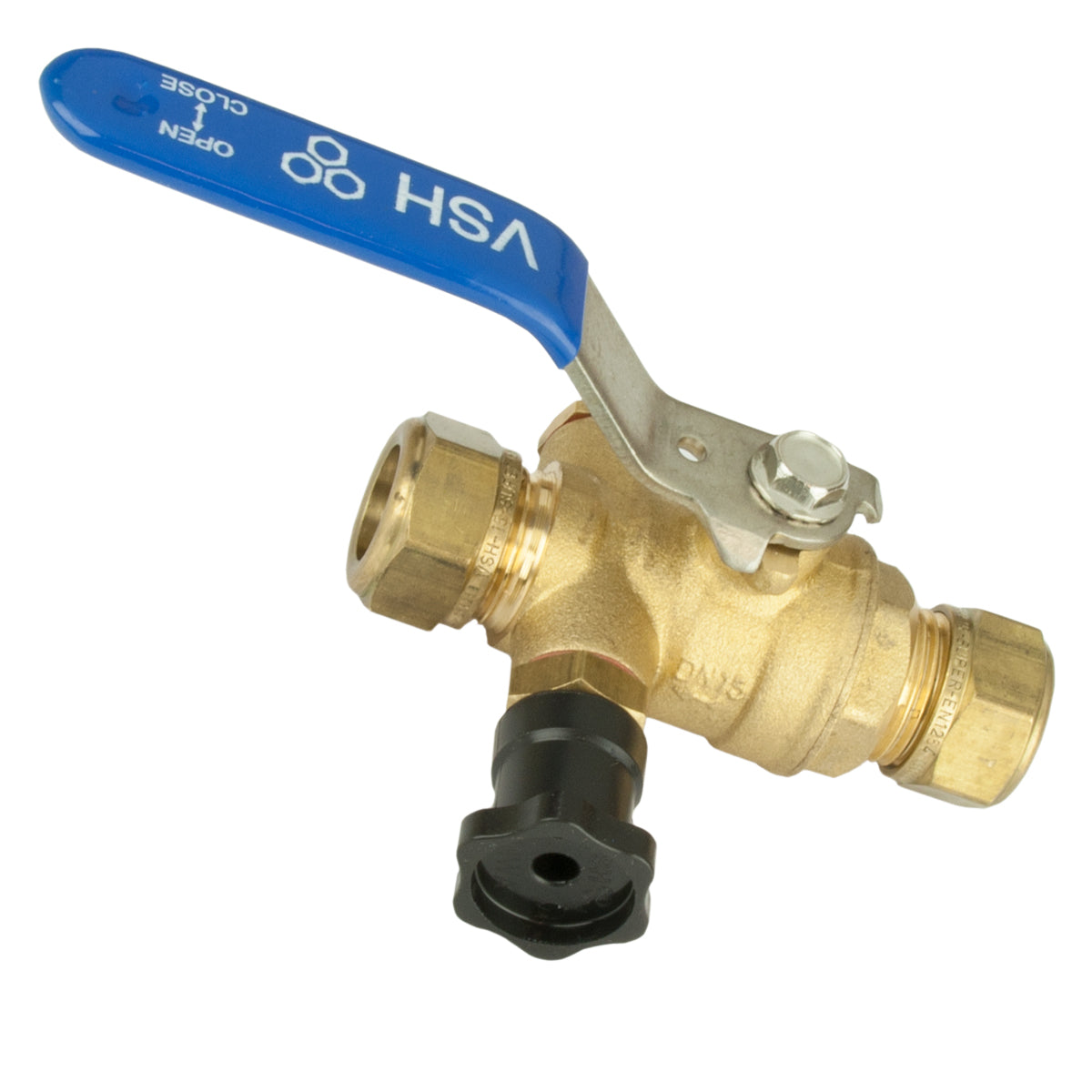

VSH ball valve with blue lever and drain plug 2x 15mm clamp

€36,00

Special order! This product cannot be canceled or returned Learn more

De verwachte levering is rond Tuesday, 9 December. We versturen op werkdagen tot 16:25

  • Awarded a 9+
    by 9000+ Customers

  • 100% Original
    Parts

  • FREE shipping
    from €75 (NL)

VSH ball valve with blue lever and drain plug 2x 15mm clamp The total length is approximately 8.9cm and the required clearance between the tube is approximately 4.7cm Execution Law House material Brass Nom. inner diameter 1 15 mm Connection 1 Clamp ring With coupling connection 1 No Nom. inner diameter 2 15 mm Connection 2 Compression ring With coupling connection 2 No Max. medium temperature (continuous) 65 °C Surface protection None Control Handle Suitable for draining Yes With drain valve Yes Color control Blue Ball seal material PTFE External pipe diameter connection 1 15 mm External pipe diameter connection 2 15 mm KIWA approved Yes

specs

related articles

We are very confident in our specialization and are therefore happy to offer you our assistance in ordering the right parts.

We believe in the advice we give and therefore guarantee its accuracy . If we've given you advice that is demonstrably incorrect, we'll take responsibility for it and you can return it free of charge* , whether it was specially ordered or not.

That's our Advice Guarantee, so if you have any doubts, please contact us for free, tailored advice.

*If you do not ask for advice, the normal return conditions apply.

Contact us with your parts question

VSH ball valve with blue lever and drain plug 2x 15mm clamp

€36
