KWC GASTRO 2-handle kitchen mixer tap parts, raised, K.24.41.20 / 21 / 22

Buy individual parts

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

  • KWC GASTRO zwenkuitloop A300 3/4
    K.33.42.A1.000

    KWC GASTRO swivel spout A300 3/4" chrome K.33.42.A1.000

    €183

    Special order

  • Image
    Z.200.177

    KWC GASTRO gaskets for swivel spout D32/26 x 11.5 mm (2 pieces) Z.200.177

    €22

    In Stock (5 pcs)

  • Image
    Z.534.706.000

    KWC complete aerator 3/4" chrome Z.534.706.000

    €45

    In Stock (3 pcs)

  • KWC GASTRO zwenkuitloop A450 3/4
    K.33.42.A3.000

    KWC GASTRO swivel spout A450 3/4" chrome K.33.42.A3.000

    €189

    Special order

  • KWC GASTRO zwenkuitloop A600 H135 3/4
    K.33.42.A5.000

    KWC GASTRO swivel spout A600 H135 3/4" chrome K.33.42.A5.000

    €227

    Special order

  • KWC bevestigingsset 5/4
    Z.532.907.901

    KWC 5/4" complete nickel-plated mounting kit Z.532.907.901

    €83

    Special order

  • Z.601.079

    KWC sealing ring D60/42 x 0.8 stainless steel Z.601.079

    €19

    Special order

  • Z.601.078

    KWC spring washer D58/42 x 4 stainless steel Z.601.078

    €22

    Special order

  • Z.600.226.901

    KWC flat nut 5/4" SW46 nickel-plated Z.600.226.901

    €24

    Special order

  • Image
    Z.503.009.000

    KWC Coronachrom faucet handle metallic blue for cold water Z.503.009.000

    €39

    In Stock (1 pcs)

  • Image
    K.32.40.01.931

    KWC upper part M20x1.25 K.32.40.01.931

    €40

    In Stock (3 pcs)

  • Image
    Z.503.008.000

    KWC Coronachrom faucet handle metallic red for hot water Z.503.008.000

    €39

    Back in stock soon

  • KWC GASTRO standzuil 5/4
    K.24.99.58.000.37

    KWC GASTRO free-standing column 5/4" L300 with rosette chrome K.24.99.58.000.37

    €292

    Special order

  • Image
    K.32.40.12.000

    KWC Surface-mounted Gastro upper part M25x1.25 chrome for model <1999 K.32.40.12.000

    €60

    Incidental Stock (2 pcs)

  • Awarded a 9+
    by 9000+ Customers

  • 100% Original
    Parts

  • FREE shipping
    from €75 (NL)

KWC GASTRO 2-handle raised kitchen tap K.24.41.20 / 21 / 22: parts

Are you looking for a part for your raised KWC GASTRO 2-handle kitchen tap, with a 300 mm riser pipe, two metal KWC CORONA handles and a swivel spout?

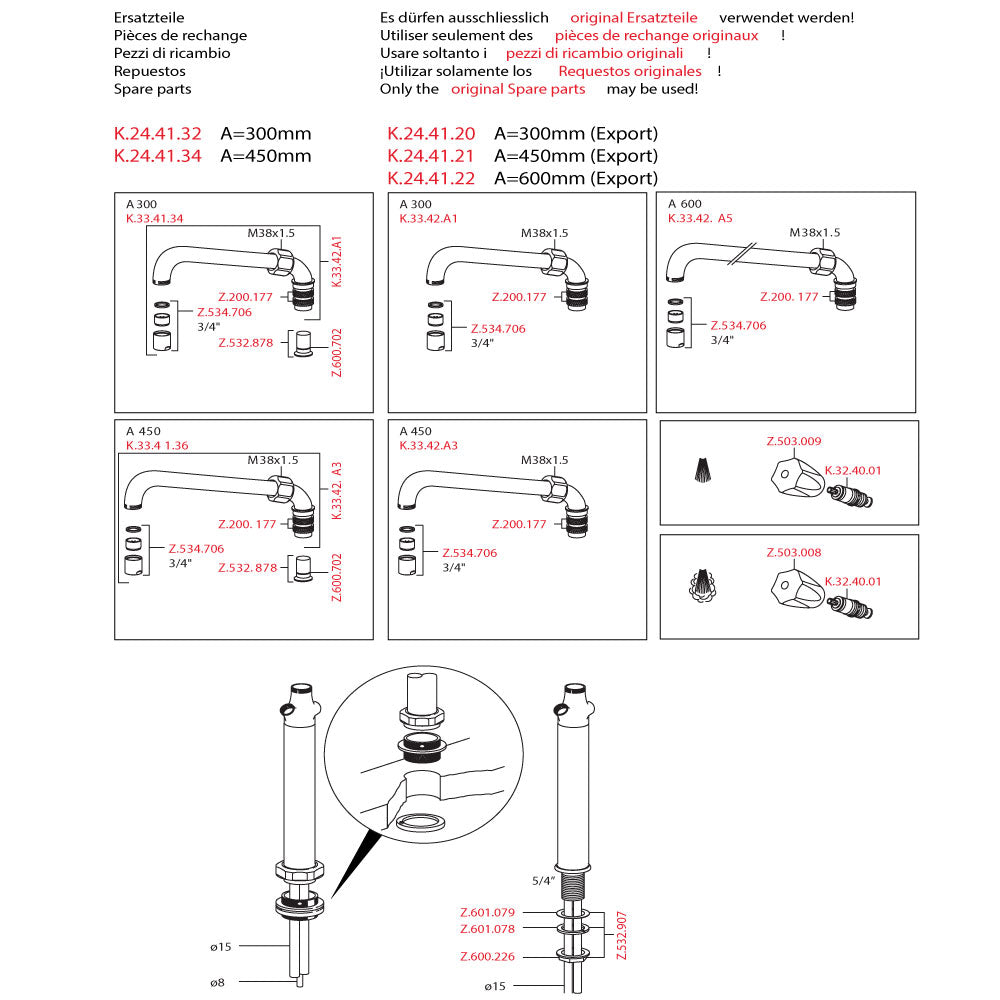

The second photo shows the current KWC parts drawing, with the KWC part number next to each part.
You will find the same numbers below under Buy individual parts.

  • Suitable for: K.24.41.20.000C07 (spout A 300), K.24.41.21.000C07 (spout A 450) and K.24.41.22.000C07 (spout A 600); chrome, copper connection pipes ø15 mm
  • In the 2000 KWC parts catalogue (last photo), this tap is shown on the same drawing as the K.24.41.31-36, with the raised riser pipe 5/4" L300 K.24.99.58.000.37 (KWC no longer supplies the L355 and M60 riser pipes); taps made before 1999 have the M25x1.25 K.32.40.12.000 top part instead of K.32.40.01.931
  • Swivel spout: A 300 K.33.42.A1.000, A 450 K.33.42.A3.000, A 600 K.33.42.A5.000; with gaskets Z.200.177 (2 pieces) and aerator 3/4" Z.534.706.000
  • Handles and top parts: cold water handle Z.503.009.000 (blue) and hot water handle Z.503.008.000 (red), each on an M20x1.25 K.32.40.01.931 top part (price per piece: you need 2, one for hot and one for cold)
  • Installation: 5/4" installation set Z.532.907.901 (1¼" threaded sleeve, ø42 mm mounting hole); the older drawing shows the individual parts: washer Z.601.079, spring washer Z.601.078 and flat nut Z.600.226.901

The third photo also shows the older KWC parts drawing, which also includes the K.24.41.32 / 34; the parts are the same.

You can find the KWC installation instructions here as a PDF.

Not sure which part you need? Send us a photo and we will find it for you!
