KWC Domo-Inox keukenkraan met uittrekbare handdouche K.10.C1.33
KWC Domo-Inox keukenkraan met uittrekbare handdouche K.10.C1.33 onderdelentekening
KWC Domo-Inox keukenkraan met uittrekbare handdouche K.10.C1.33
KWC Domo-Inox keukenkraan met uittrekbare handdouche K.10.C1.33 onderdelentekening

KWC

KWC parts Domo-Inox kitchen faucet with pull-out hand shower K.10.C1.33

Buy individual parts

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

  • Image
    Z.602.997.700

    KWC mounting screw M4x17 steel Z.602.997.700

    €10

    In Stock (4 pcs)

  • Image
    Z.600.975

    KWC seal D52.9/43.7 x 4.6 mm Z.600.975

    €13

    Special order

  • KWC cartouchemoer M44x1 rvs met groef Z.632.149.700
    Z.632.149.700

    KWC cartridge nut M44x1 stainless steel with groove Z.632.149.700

    €79

    Special order

    Available colors

  • Image
    K.32.60.00

    KWC cartridge L 39 universal K.32.60.00

    €77

    In Stock (3 pcs)

  • Image
    Z.200.220

    KWC sliding ring/O-ring set for Domo and Orcino Z.200.220

    €31

    In Stock (3 pcs)

  • Image
    Z.602.306

    KWC profile gasket 18 x 4.7 mm Z.602.306

    €10

    Special order

  • KWC keerklep DW15 Z.500.476
    Z.500.476

    KWC non-return valve DW15 Z.500.476

    €22

    Special order

  • Image
    Z.504.212.104

    KWC kitchen hand shower A225 brown Z.504.212.104

    €106

    Special order

  • Image
    Z.538.101.000

    KWC kitchen hand shower A225 chrome Z.538.101.000

    €106

    In Stock (3 pcs)

  • Image
    Z.631.995

    KWC flat gasket 20 x 15 x 2.6 mm for spray plate Z.631.995

    €13

    In Stock (1 pcs)

  • Image
    Z.504.214.106

    KWC shower plate with mixer spray hand shower kitchen black Z.504.214.106

    €40

    In Stock (1 pcs)

  • Z.602.305

    KWC gasket 14.7 x 9 x 3 mm Z.602.305

    €10

    Special order

  • Awarded a 9+
    by 9000+ Customers

  • 100% Original
    Parts

  • FREE shipping
    from €75 (NL)

KWC Domo-Inox kitchen tap with pull-out hand shower K.10.C1.33: parts

Are you looking for a part for your KWC Domo-Inox kitchen tap with pull-out hand shower, type K.10.C1.33?

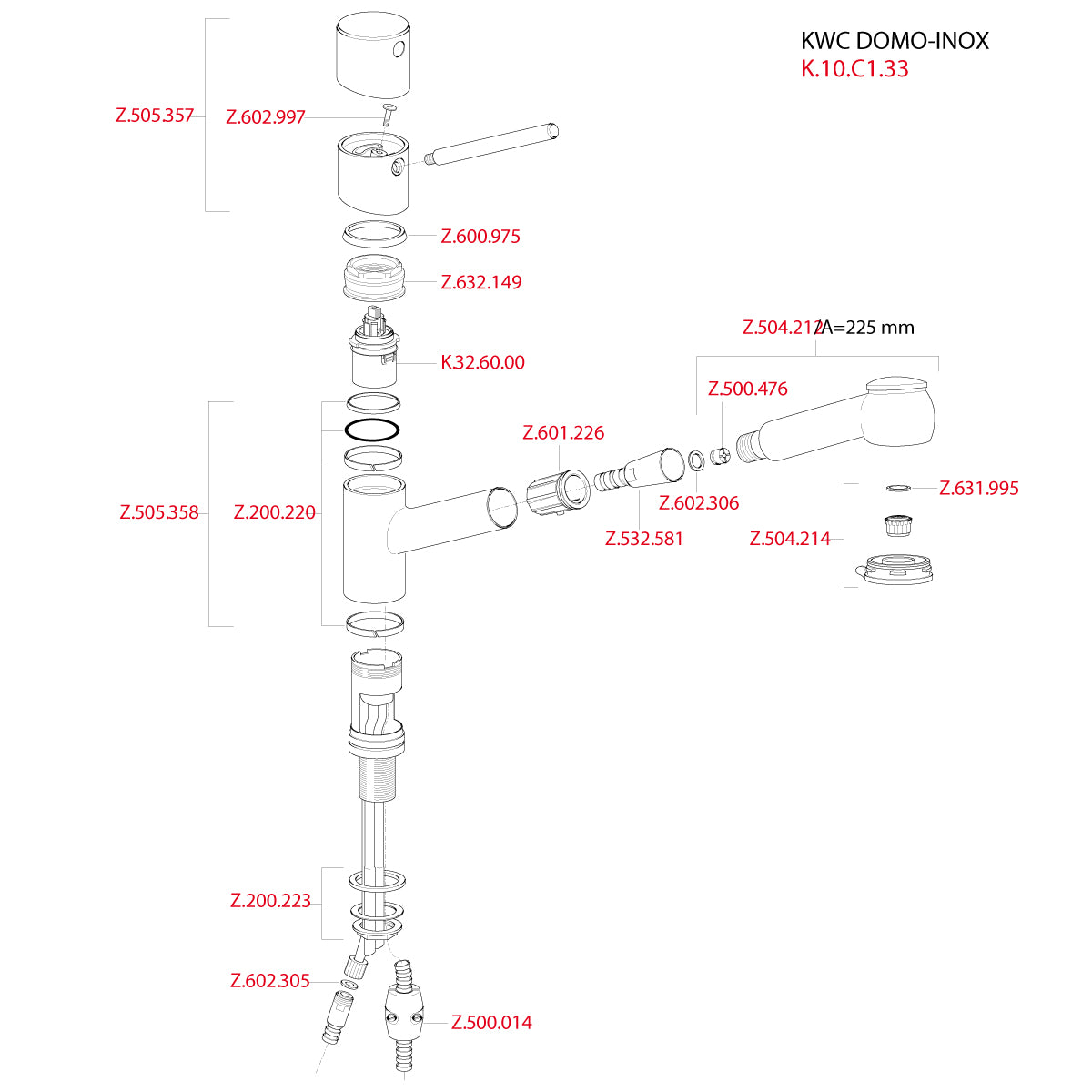

The second photo shows the parts drawing from the 2000 KWC parts catalogue, with the KWC part number for each part.
Below, under Buy individual parts, you will find the same numbers.

  • Suitable for: K.10.C1.33 (spout A225)
  • Handle: fixing screw Z.602.997.700
  • Cartridge: universal cartridge K.32.60.00 (Ø 39) with stainless steel cartridge nut Z.632.149.700 (M44x1, wrench size 42) and washer Z.600.975
  • Spout: sliding ring/O-ring set Z.200.220 on the tap body
  • Hand shower: hand shower A225 Z.504.212.104 (brown) or the newer model Z.538.101.000 (chrome), spray plate Z.504.214.106 with washer Z.631.995; non-return valve Z.500.476 with washer Z.602.306
  • Pull-out hose: washer Z.602.305 at the connection
  • Parts on the drawing that KWC no longer supplies (including handle set Z.505.357, hose guide Z.505.358, guide sleeve Z.601.226, metal hose Z.532.581, counterweight Z.500.014 and fixing set Z.200.223) are not included in the list

Not sure which part you need? Send us a photo, we will find it for you!

Product ID
15355790688640
Product type -
Application area Parts Per Drawing
