KWC Bliss keukenkraan met uittrekbare handdouche 10.021.033
KWC Bliss keukenkraan met uittrekbare handdouche 10.021.033 onderdelentekening
KWC Bliss keukenkraan lagedruk 10.025.033 onderdelentekening
KWC Bliss keukenkraan met uittrekbare handdouche 10.021.033
KWC Bliss keukenkraan met uittrekbare handdouche 10.021.033 onderdelentekening
KWC Bliss keukenkraan lagedruk 10.025.033 onderdelentekening

KWC

KWC Bliss kitchen faucet parts with pull-out hand shower 10.021.033

Buy individual parts

Please check the drawing to see which part you need. Parts that are still available are listed below including relevant information such as stock and expected delivery time.

  • KWC Bliss hendelset kort chroom Z.534.890.000
    Z.534.890.000

    KWC Bliss short handle set chrome Z.534.890.000

    €86

    Special order

  • KWC Bliss hendelset lang chroom Z.534.889.000
    Z.534.889.000

    KWC Bliss long lever set chrome Z.534.889.000

    €118

    Special order

  • KWC Bliss bolkap kunststof chroom Z.634.090.000
    Z.634.090.000

    KWC Bliss round plastic chrome Z.634.090.000

    €13

    Special order

  • KWC temperatuurbegrenzingsring cartouche M 35 Z.633.899
    Z.633.899

    KWC temperature limiting ring cartridge M 35 Z.633.899

    €10

    Special order

  • KWC cartoucheschroef M37x1 messing Z.634.089
    Z.634.089

    KWC cartridge screw M37x1 brass Z.634.089

    €26

    Special order

  • KWC cartridge M 35 without ECO Z.534.836
    Z.534.836

    KWC cartridge M 35 without ECO Z.534.836

    €79

    In Stock (2 pcs)

  • Image
    Z.535.092.106

    KWC JETCLEAN spray plate hand shower kitchen Z.535.092.106

    €40

    Special order

  • KWC terugslagklep D14 voor uittrekbare handdouche Z.532.255
    Z.532.255

    KWC non-return valve D14 for pull-out hand shower Z.532.255

    €20

    Special order

  • Image
    Z.534.830.000

    KWC metal pull-out hose L1400 M14x1 x 1/2" chrome Z.534.830.000

    €108

    Back in stock soon

  • Image
    Z.600.025.700

    KWC mounting screw M6x0.75 stainless steel Z.600.025.700

    €13

    Incidental Stock (1 pcs)

  • Z.534.948

    KWC Bliss sliding ring set Z.534.948

    €35

    Special order

  • Image
    Z.532.241

    KWC reinforcing flange for kitchen faucet mounting Z.532.241

    €24

    Special order

  • Image
    Z.535.773

    KWC return spring for pull-out hand shower Z.535.773

    €40

    In Stock (4 pcs)

  • KWC Bliss keukenhanddouche A225 chroom Z.534.951.000
    Z.534.951.000

    KWC Bliss kitchen hand shower A225 chrome Z.534.951.000

    €142

    Special order

  • Z.535.137.106

    KWC JETCLEAN low-pressure spray plate grey/white bayonet Z.535.137.106

    €51

    Special order

  • KWC terugslagklep-aansluiting 3/8
    Z.536.223

    KWC non-return valve connection 3/8" female/male thread Z.536.223

    €43

    Special order

  • Awarded a 9+
    by 9000+ Customers

  • 100% Original
    Parts

  • FREE shipping
    from €75 (NL)

KWC Bliss kitchen tap with pull-out hand shower 10.021.033: parts

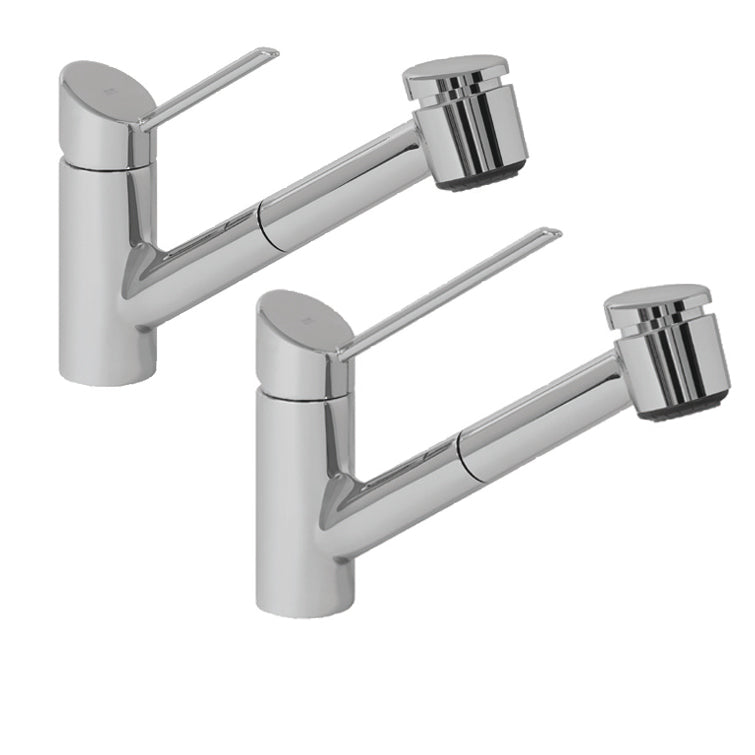

Are you looking for a part for your KWC Bliss kitchen tap with pull-out hand shower with KWC JETCLEAN, type 10.021.033.000FL or 10.021.033.000LLFL (long handle)?

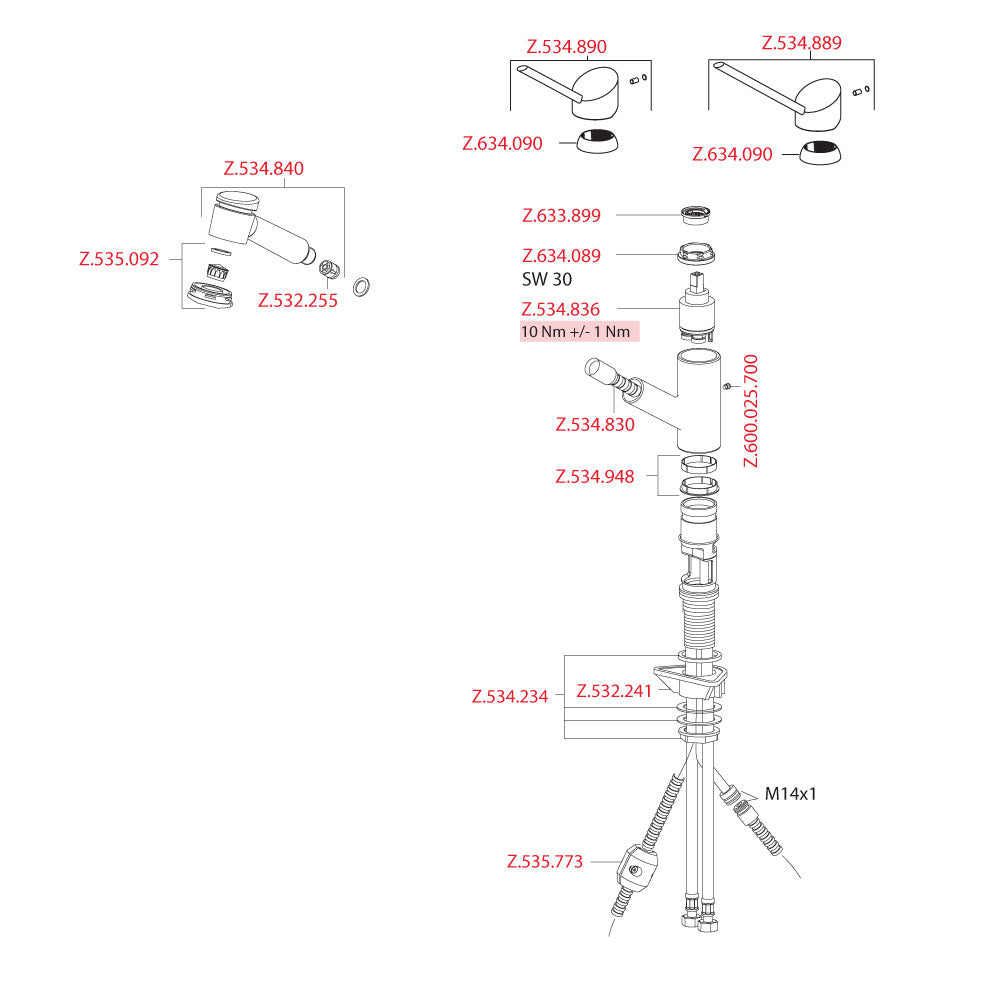

In the second photo you can see the KWC parts drawing, with the KWC part number next to each part.
Below under Buy individual parts you will find the same numbers.

  • Valid for: 10.021.033.000FL and 10.021.033.000LLFL (chrome), pull-out length up to 700 mm, hose guide rotatable 130°, mounting with threaded sleeve M33x1.5, tap hole ø35 mm
  • Also valid for the low-pressure version 10.025.033.000 (for a close-in boiler, copper connection pipes ø8 mm, 6 l/min): other hand shower Z.534.951.000 with JETCLEAN low-pressure spray plate Z.535.137.106 and non-return valve connection 3/8" Z.536.223; the remaining parts are the same (see the third photo)
  • Handle: short handle set Z.534.890.000 (FL) or long handle set Z.534.889.000 (LLFL), with the spherical cap Z.634.090.000
  • Cartridge: KWC cartridge M 35 without ECO Z.534.836 with temperature limiting ring Z.633.899, secured with the screw M37x1 Z.634.089 (wrench size 30, tightening torque 10 Nm ±1 Nm)
  • Hand shower: KWC no longer supplies the complete hand shower Z.534.840; the JETCLEAN spray plate Z.535.092.106 and the non-return valve D14 Z.532.255 can be ordered separately
  • Pull-out hose and hose guide: metal pull-out hose L1400 Z.534.830.000 with retraction weight Z.535.773, mounting screw M6x0.75 Z.600.025.700 and sliding ring set Z.534.948
  • Mounting: reinforcement flange Z.532.241; KWC no longer supplies the mounting set Z.534.234 separately
  • KWC no longer supplies this tap, but the parts in the list below can still be ordered
