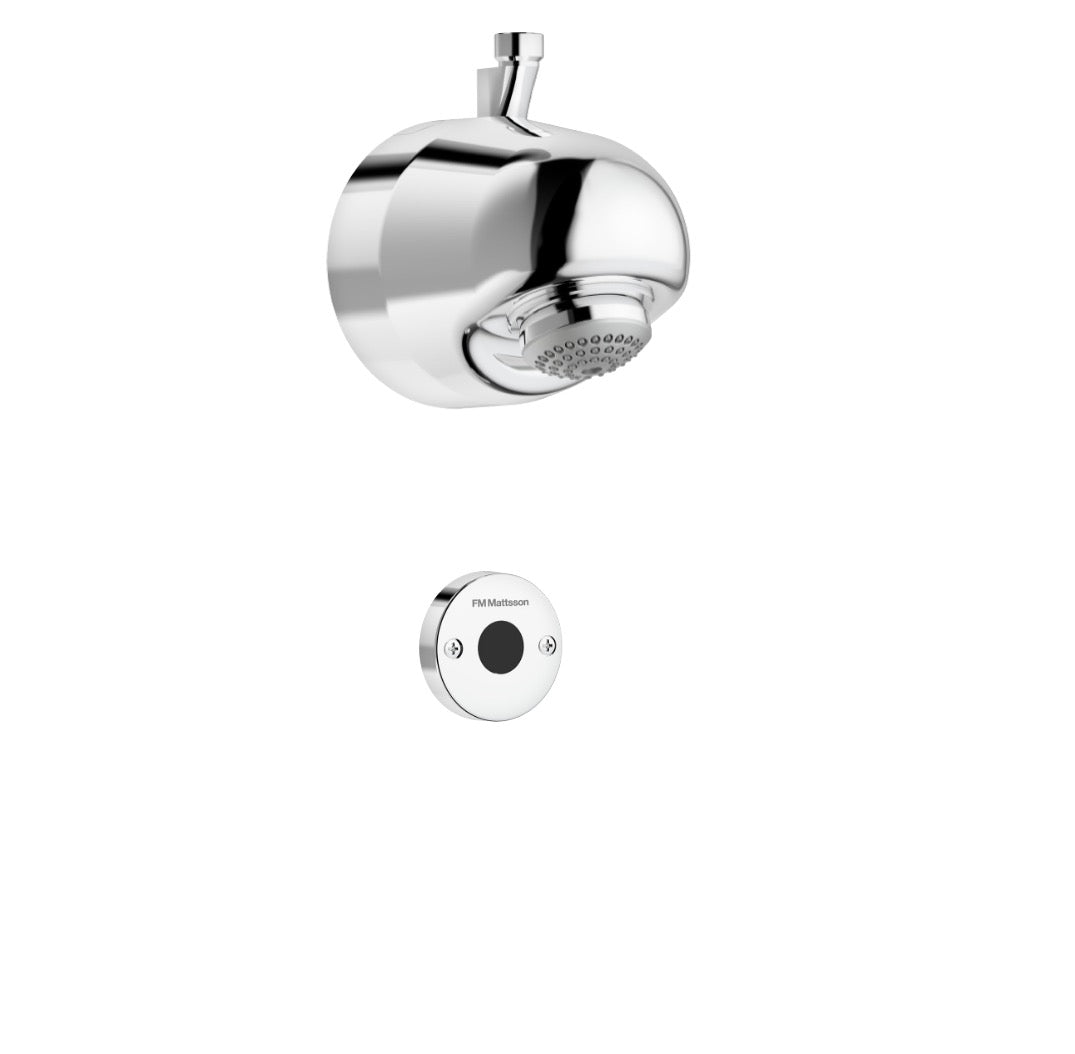

FM Mattsson Tronic Compact overhead shower with separate sensor control for mixing valve (battery powered) chrome

FM Mattsson Tronic Compact overhead shower with separate sensor control for mixing valve (battery powered) chrome Tronic Compact with wireless connectivity options For mixing valve Battery operation can be converted to mains connection Top connection G1/2 Solenoid valve shut-off and electronics integrated into the shower head Programmable start button. Rinse time from 10 to 60 seconds (30 seconds is the factory setting) Flush Timeout - safety shut-off to prevent flooding for up to 5 minutes Spray angle adjustable +/- 5 Volume limiter 9 l / min Can be switched off by a solenoid valve (e.g. for cleaning) Low energy consumption Can be rinsed with hot water for legionella prevention Sensor IP67 Installation: The power cord between the shower head and the start button should ideally be placed in the joints between wall tiles or in a conduit, but take care not to damage the wall's moisture barrier. For the mains power supply, the AC adapter 1623-0000 must be installed and the power supply 1619-4000 or the transformer 1619-3000 plus extension cord 1617-5500 Tronic WMS: With a wireless connection to the Tronic WMS system (gateway and subscription required) using a dongle (1616-1000), the following alternatives are obtained: - Programmable rinse time from 10-60 seconds - Built-in temperature measurements (measures outgoing water temperature) - Programmable temperature stop (the mixer tap stops immediately at the maximum set temperature) - Rinse time control prevents overflow, maximum rinse time 5 minutes - Adjustable hygiene flushing interval and flushing time (prevents water stagnation) - Recording of all flushes with time, water consumption, and temperature. Only with WMS - Stagnation alarm (alarm will be triggered if the device is not used within the set time) – Only with WMS - Alarm via SMS or email - Only with WMS
